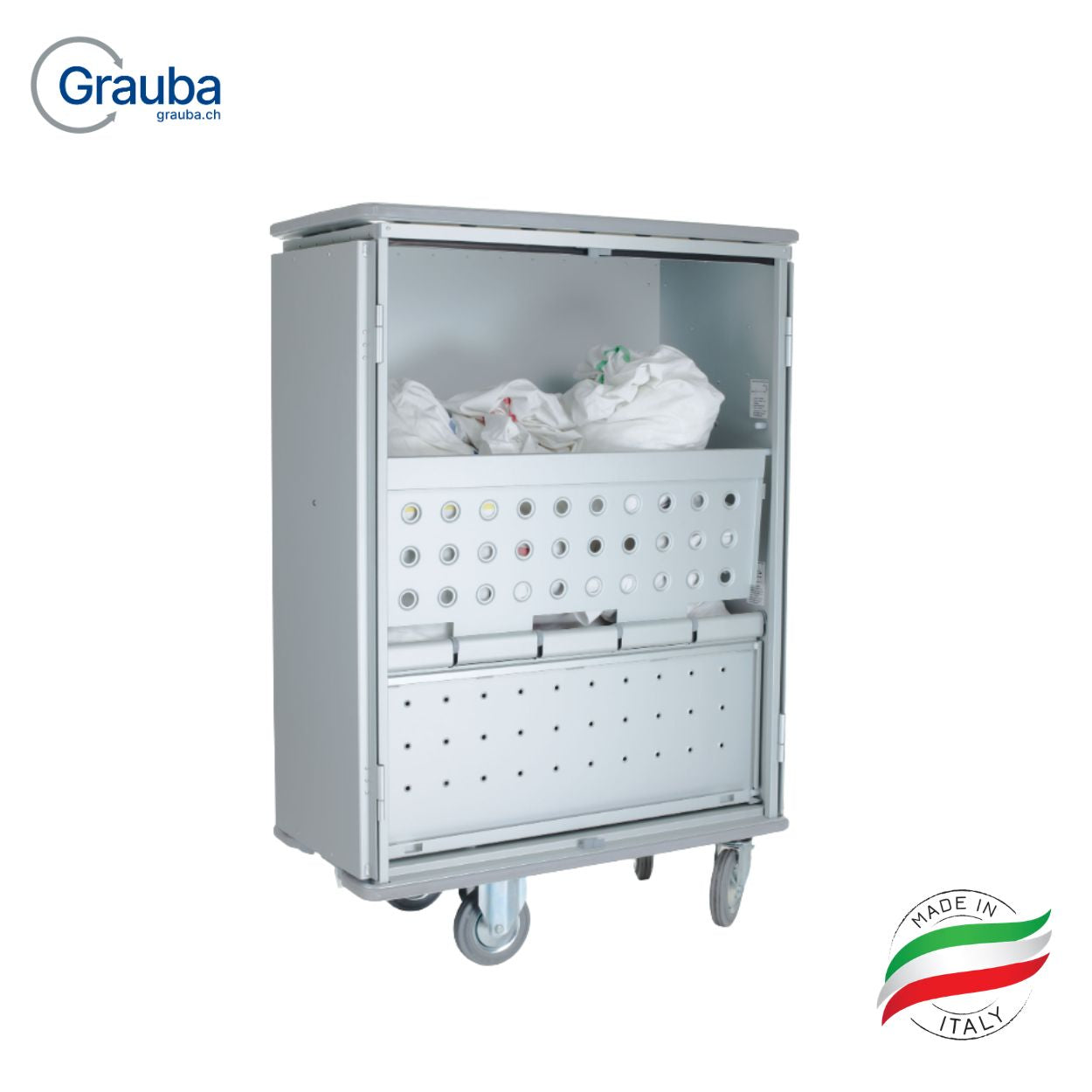

Alvi cabinet trolley for fresh laundry 1570CR

Alvi cabinet trolley for fresh laundry 1570CR

Corpus:

• Cabinet trolley with hinged shelves and upper deflector frame
• Light metal AlMg3, anodized (10 microns)

Shelves:

• Upper shelf folds inwards
• Lower shelf folds forward, consisting of 2 parts, can be positioned vertically to secure bags

3 shelf configurations:

• collection and transport of fresh laundry
• loading and unloading of bags
• transport of dirty laundry

Door:

• 2-leaf door made of 2.5 mm bent sheet metal with welded reinforcements at the top and bottom
• Opening to 270°, locking magnets in the open position
• Vertical latch closure with locking at the top and bottom

Seal:

• EPDM seal at the top against water and dust

Handle:

• push handle on one end

base frame:

• Stable base frame made of epoxy powder coated steel (80 microns)

deflector frame:

• Lower and upper deflector frame made of grey rubber, non-marking

protective corners:

• On the back

Roll:

• 2 fixed and 2 swivel castors, diameter 200 mm made of grey rubber, non-marking, housing made of galvanized steel

Load capacity:

• Per shelf: 80 kg
• floor: 120 kg

Clear height between shelves:

• Lower compartment: 479 mm
• Middle compartment: 465 mm
• Upper compartment: 397 mm

Dimensions:

• 1230 x 630 x 1785 mm (external dimensions)
• 883 L
