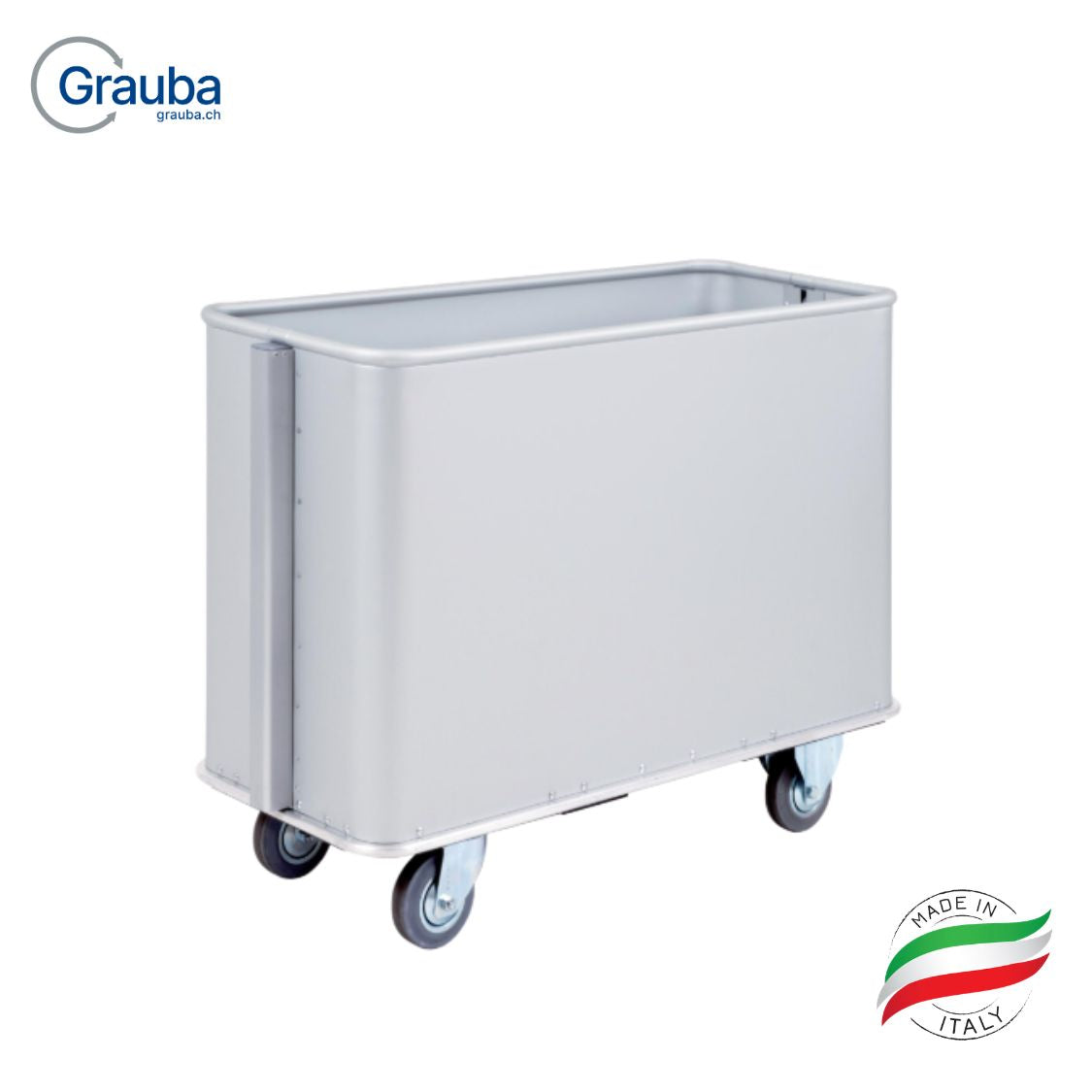

Alvi spring base trolley 2+2 roller arrangement 680CR

Body:

• Light metal AlMg3, anodized (10 microns)

Movable floor:

• Mounted on lateral guide devices (injection molded pieces), suitable for sliding in light metal rails

Feathers:

• 1 or 2 steel springs (depending on dimensions)

Base frame:

• Stable base frame made of epoxy powder coated steel, torsion-free

Roll:

• 2 fixed and 2 swivel castors made of grey rubber, non-marking, housing made of galvanized steel

Dimensions:

• 223 L = 1080 x 450 x 800 mm (external dimensions), 32 kg
• 336 L = 1080 x 630 x 800 mm (external dimensions), 35.1 kg
• 545 L = 1470 x 730 x 800 mm (external dimensions), 49.3 kg
• 774 L = 1550 x 930 x 850 mm (external dimensions), 72.2 kg
