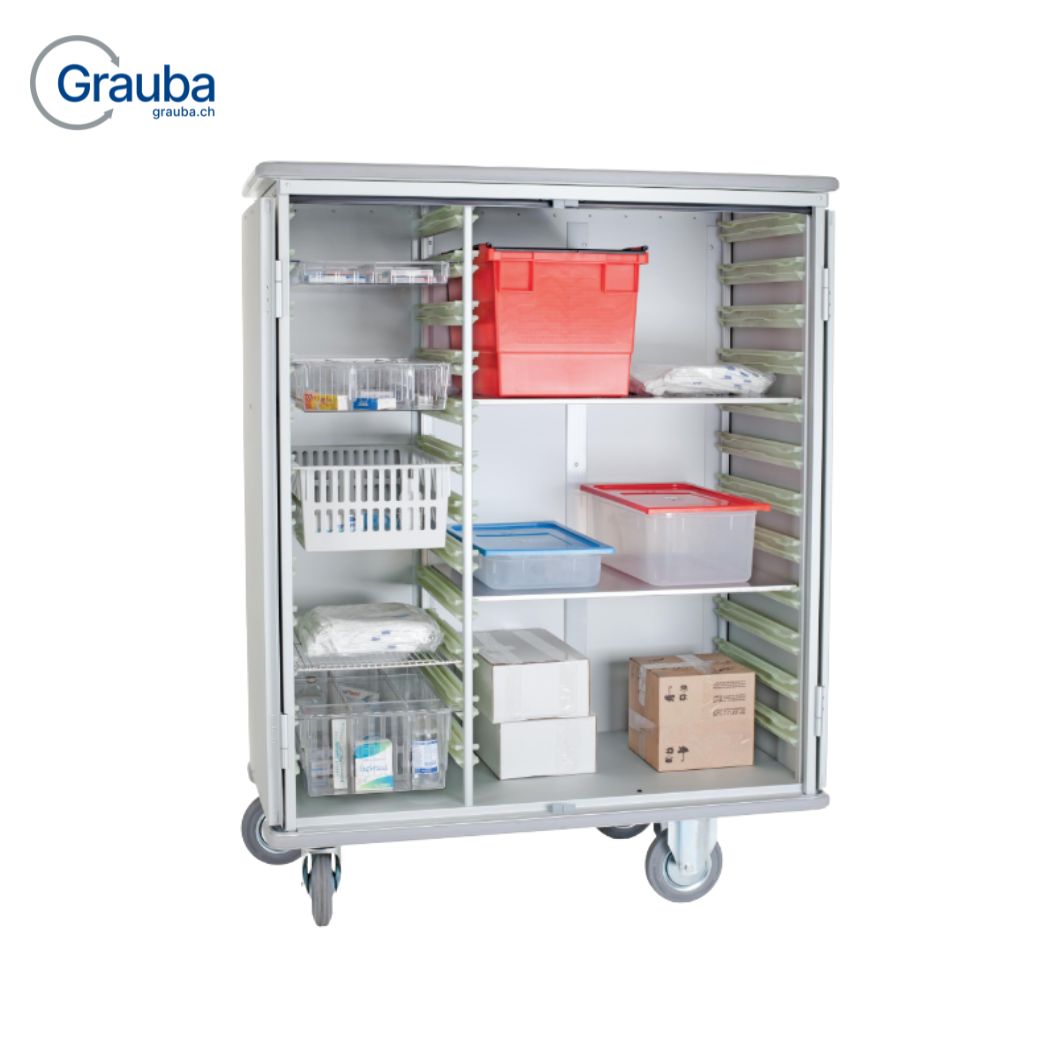

Alvi modular cabinet trolley 3150CR

Body of the car:

  • Made of light metal AlMg3, anodized (10 microns)
  • Robust and durable material, ideal for versatile applications

Interior:

  • 2 sections made of light metal profiles
  • Glass fiber reinforced nylon rails with stop system
  • Rail pitch: 116.5 mm
  • Section 1: 2 removable stainless steel shelves, positionable on rails (12 positions, covers 2/3 of the total space)
  • Section 2: Capacity for a maximum of 12 ISO modules with a height of 100 mm

Doors:

  • 2-leaf door made of 2.5 mm bent sheet metal with welded reinforcements at the top and bottom
  • Door opening: 270° with locking magnets in the open position
  • Vertical latch closure with locking at the top and bottom

Seal:

  • Equipped with an EPDM seal on top to protect against water and dust

Handle:

  • A push handle on one end for easy handling

Frame:

  • Stable, torsion-free base frame made of light metal
  • Lower and upper deflector frames made of non-marking grey rubber

Roll:

  • 2 fixed and 2 swivel castors with a diameter of 200 mm
  • Roller material: Non-marking grey rubber
  • Housing made of galvanized steel for high stability and durability

Load capacity:

  • Load capacity per pair of rails: 20 kg
  • Load capacity per shelf: 60 kg
  • Load capacity of the floor: 100 kg

Internal dimensions

  • 1300 x 630 x 1420 mm h

External dimensions

  • 1400 x 710 x 1785 mm h

This trolley combines functionality, flexibility and high-quality materials and is perfectly suited for professional applications with high demands on load capacity and stability.
