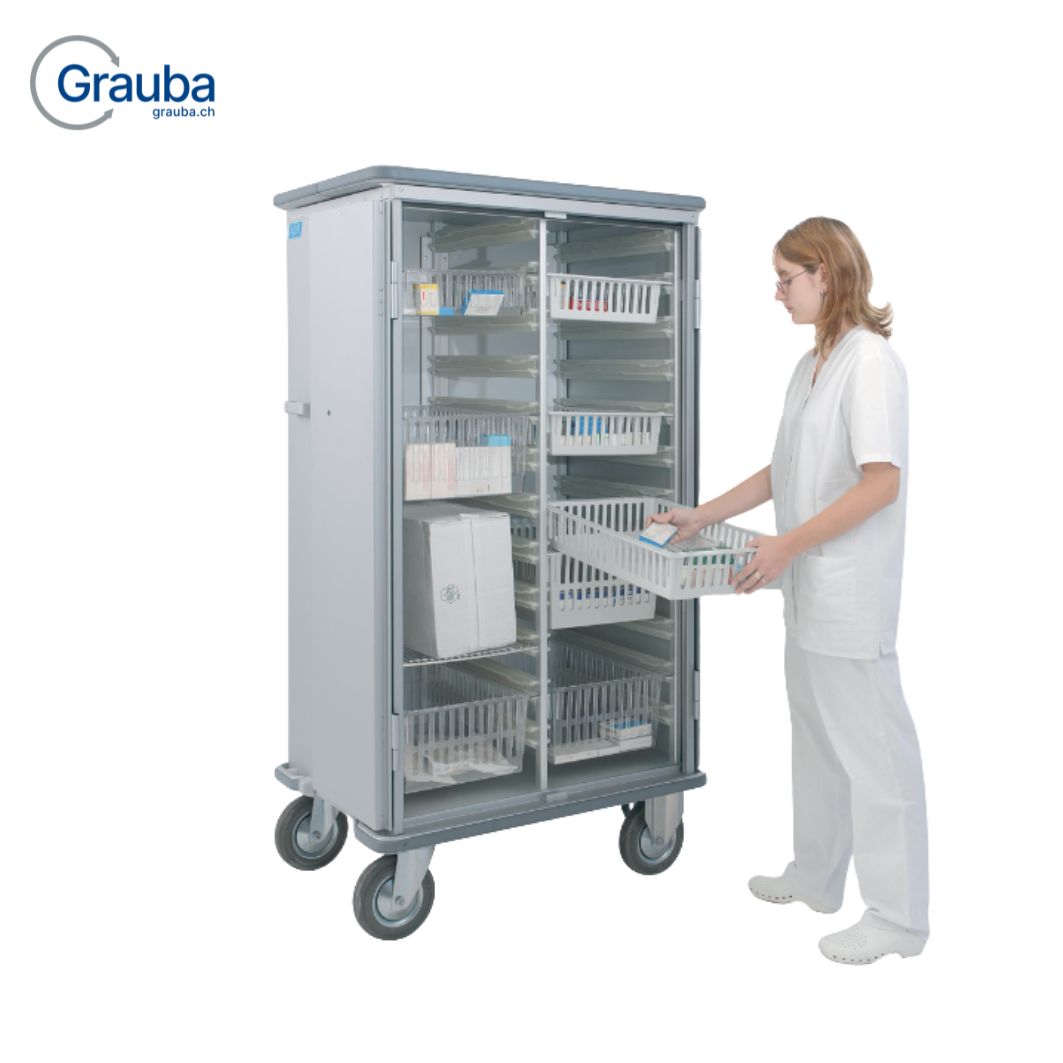

Alvi modular cabinet trolley 3170 CR

Alvi modular cabinet trolley 3170 CR

Body of the car:

• Made of light metal AlMg3, anodized (10 microns)
• Robust and durable, suitable for various applications

Interior:

• 2 sections made of light metal profiles
• Glass fiber reinforced nylon rails with stop system
• Grid rails: 116.5 mm
• Capacity: Maximum 12+12 ISO modules with 100 mm height
• Also suitable for transporting other containers that can be positioned on wire mesh floor BLSFL4004

Doors:

• 2-leaf door made of 2.5 mm bent sheet metal with welded reinforcements at the top and bottom
• Door opening: 270° with locking magnet in the open position
• Vertical latch closure with locking at the top and bottom

Seal:

• Equipped with an EPDM seal on top to protect against water and dust

Handles:

• 1 push handle on each front side for comfortable handling

Frame:

• Stable, torsion-free base frame made of epoxy powder-coated steel (80 microns)
• Lower and upper deflector frames made of non-marking grey rubber

Roll:

• 2 fixed and 2 swivel castors with a diameter of 200 mm
• Roller material: Non-marking gray rubber
• Housing made of galvanized steel for high stability

Load capacity:

• Maximum load capacity per pair of rails: 20 kg

External dimensions:

• 977 x 710 x 1785 mm h
