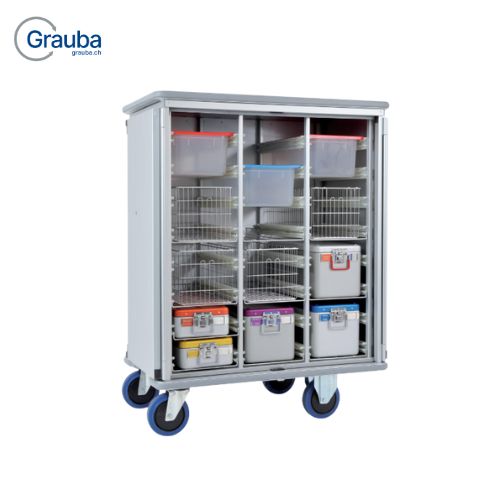

Alvi sterile goods cabinet trolley 3165 CR

Alvi sterile goods cabinet trolley without contents 3165 CR

Corpus

• Material: light metal AlMg3, anodized
• Anodizing: 10 micrometers
• Dimensions: Usable width 302 mm

Interior

• Sections: 3 sections made of light metal profiles
• Rails: Glass fiber reinforced nylon rails with stop system
• Rail spacing: 150 mm

Doors

• Door type: 2-leaf door
• Material: 2.5 mm bent sheet metal with welded reinforcements at the top and bottom
• Hinges: Continuous hinges
• Opening: 270° and 260° for disinfection in the tunnel
• Closure: Vertical latch closure with locking at the top and bottom
• Seal: EPDM seal on the 4 sides of the opening (doors, floor and lid)
• Secure closure: connection of the 2 door leaves and connection at the 4 corners of the opening

Handle

• Quantity: 1 push handle per front side

Frame

• Base frame: Stable, torsion-free base frame made of light metal
• Deflector frame: Lower and upper deflector frame made of grey rubber, non-marking

Roll

• Number: 2 fixed and 2 swivel castors
• Diameter: 160 mm
• Type: Superelastic grey
• Ball bearing: With plastic water protection
• Case: stainless steel

Load capacity

• Per pair of rails: 20 kg

Capacity

• Sterile units: Max. 12 sterile units with dimensions 300x600x300 mm (height)
• Polypropylene containers: Max. 12 polypropylene containers with lids, dimensions 530x325x200 mm (height)

use

• Positioning of metal containers: On shelves BLSFL3004
• Positioning of polypropylene containers: With lid (BGDNN …) without shelves
